FitMaster Suspension Systems Product Match

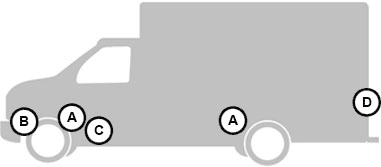

2025 Ford F550 Truck
2025 Ford F550 Truck
AAnti-Sway Bar Info
Learn more about our Anti-Sway Bars
Controlling sway helps stabilize a vehicle's side-to-side motion and gives maneuverability when cornering. If you are only installing one bar, it is recommended to start with a rear anti-sway bar.
Front
Front sway bar 1 3/4 diameter (2WD & 4WD) cab chassis F450-F550.
| Instructions: | |
| Additional info: | EV Type 3 |
| Vehicle type: | EV Type 3 |
| Drilling required: | no |
| Replace OEM bar: | yes |
| Installation time: | 1 hr |
Front sway bar 1 3/4 diameter factory replacement.
| Instructions: | |
| Vehicle type: | Truck |
| Drilling required: | no |
| Replace OEM bar: | yes |
| Installation time: | 1 hr |
Front sway bar 1 3/4 diameter factory replacement. Heat-treated bar for heavy-duty 16,000 lbs and heavier.
| Instructions: | |
| Additional info: | Truck |
| Vehicle type: | Truck |
| Drilling required: | no |
| Replace OEM bar: | yes |
| Installation time: | 1 hr |
Front sway bar 1 1/2 diameter (2WD & 4WD) cab chassis F450-F550.
| Instructions: | |
| Additional info: | EV Type 3 |
| Vehicle type: | EV Type 3 |
| Drilling required: | no |
| Replace OEM bar: | yes |
| Installation time: | 1 hr |
Rear
Rear anti-sway bar 1 3/4-inch diameter. Factory replacement designed for heavy-duty applications.
| Instructions: | |
| Vehicle type: | Truck |
| Drilling required: | no |
| Replace OEM bar: | yes |
| Installation time: | 2 hr |
Rear factory replacement swaybar 1-1/2" diameter bar. The anti-sway bar in this kit has been thoroughly heat-treated and is designed for bed campers or heavy hauling situations. Sway bar width at end link is 33 5/8 inches. If no factory sway bar is present you will need to purchase B1032 bushing bracket replacement quantity 2.
| Instructions: | |
| Additional info: | EV Type 3 |
| Vehicle type: | EV Type 3 |
| Drilling required: | no |
| Replace OEM bar: | yes |
| Installation time: | 1 hr |
- The anti-sway bar in this kit has been thoroughly heat-treated and is designed for bed campers or heavy hauling situations.
Rear factory replacement swaybar 1-1/2" diameter bar. Sway bar width at end link is 33 5/8 inches. If no factory sway bar is present you will need to purchase B1032 bushing bracket replacement quantity 2.
| Instructions: | |
| Additional info: | EV Type 3 |
| Vehicle type: | EV Type 3 |
| Drilling required: | no |
| Replace OEM bar: | yes |
| Installation time: | 1 hr |
Subcomponents
Bushing & Hardware Kit
| Instructions: | |
| Additional info: | EV Type 3 |
| Vehicle type: | EV Type 3 |
| Drilling required: | no |
| Replace OEM bar: | no |
| Installation time: | ½ hr |
BSteering Stabilizers
Learn more about our Steering Stabilizers
Roadmaster steering stabilizers provide an immediate and dramatic improvement in handling and control. Please note: A complete Steering Stabilizer system consists of a mounting kit and the stabilizer unit. Be sure to order both. The part numbers are shown below.
Reflex Steering Stabilizer only. You will also need to order a corresponding RBK mounting kit in order to install this product.
| Instructions: | |
| Vehicle type: | EV Type 3 |
| Drilling required: | no |
| Replace OEM bar: | no |
| Installation time: | ½ hr |
The RBK sku listed is for the mounting kit only. Be sure to order this AND the steering stabilizer part number RSSC.
| Instructions: | |
| Vehicle type: | EV Type 3 |
| Drilling required: | yes |
| Replace OEM bar: | no |
| Installation time: | 1 hr |
CTruTrac
Learn more about our TruTrac bars
A Trac bar eliminates axle play from side-to-side.
— No results. —
What is a Direct-Connect Baseplate?
What is a Crossbar-Style Baseplate?
